压力传感器 060G2101，060G2047，060G2049,060GGG2117
特性 |
价值 |
| 类型 | AKS 33 |
| 质量[kg] | 0.212 [kg] |
| - common | Pin 2 |
| + supply | Pin 1 |
| Accuracy, max. +/- FS [%] | 0,8 % |
| Accuracy, typical +/- FS [%] | 0,3 % |
| Adjustment, zero point and span | 没有 |
| Ambient temperature range [°C] | -40 - 85 °C |
| Ambient temperature range [°F] | -40 - 185 °F |
| ATEX | |
| C UR | |
| CSA | |
| GOST POCC | |
| Approval note | Ex II 3G Ex-nA IIAT3 |
| Approval standard | 6967179 |
| Approval standard | E227388 |
| Approval standard | E31024 |
| Compensated temperature range [°C] | -30 - 40 °C |
| Compensated temperature range [°F] | -22 - 104 °F |
| EAN number | |
| Electrical conn. Male/Female | Male and Female |
| Electrical connection size | Pg 9 |
| 电气连接标准 | EN 175301-803-A |
| Enclosure rating | IP65 |
| Flush diaphragm | 没有 |
| Intrinsically safe | 没有 |
| Max. overload pressure [bar] | 33,0 bar |
| Max. overload pressure [psi] | 479 psi |
| Medium temperature range [°C] | -40 - 85 °C |
| Medium temperature range [°F] | -40 - 185 °F |
| Output signal [mA] | 4 - 20 mA |
| 包装形式 | Multi pack |
| 压力连接管 | G 3/8 |
| Pressure connection standard | EN 837 |
| Pressure Male/Female | Male |
| 压力范围[bar] | -1,00 - 12,00 bar |
| Pressure range [psi] | -14,50 - 174,00 psi |
| Pressure unit reference | Gauge (relative) |
| Pulse snubber | 没有 |
| 每标准包装的数量 | 14 pc |
| Max. response time [ms] | 4 ms |
| Specification key | AKS 33 |
| Supply voltage [V d.c.] | 10,00 - 30,00 V |

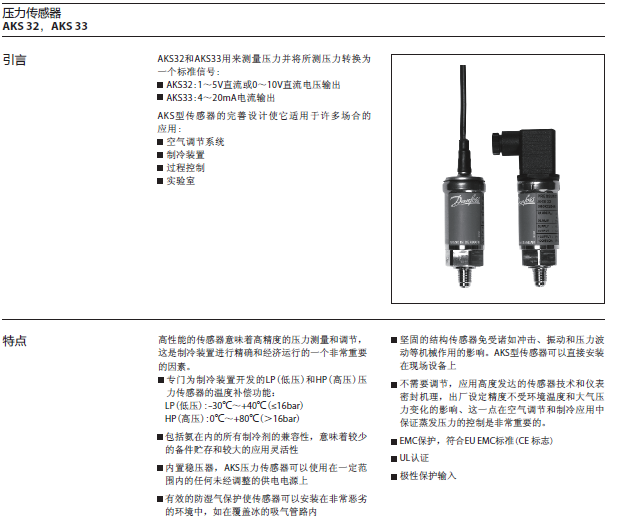

AKS 33是压力传感器，将测量所得的压力转换成一个4-20mA 电流输出信号。输出信号可以适用于ADAP-KOOL®制冷控制系统。
